Tuesday, March 21, 2017

Midterm




For the midterm you should have:
1. Your 3D printed Neck-it project.

 2. 3D printed linkage samples

 3. Full print renders of Neck-it project on a model (photoshop/montage similar to last semester)

 4. If you do not have your print you mush have 4 color prints of renders and full layout drawings that are labeled with dimensions and relevant information (name date etc)

 5. As least 25 posts on your blog (failure to have 25 posts will result in a a half grade reduction on your final blog grade)

 6. Neck it files must be uploaded into your google drive folder the day of the midterm
























































SCULPTRIS


HERE ARE A FEW PRO TIPS WITH SCULPTRIS


CTRL CLICK ON OBJECT TO PAINT ON MASK

CTRL CLICK OFF OF OBJECT TO REVERSE MASKING

CTRL DRAG WINDOW TO RELEASE THE MASKING

CTRL D TO MASK ALL

CTRL ALT PAINT TO REMOVE MASKING

SHIFT SCROLL TO REDUCE BRUSH SIZE

CTRL SCOLL TO ADJUST STRENGTH OF TOOL

ALT RIGHT CLICK DRAG TO MOVE

DONT FORGET ABOUT SYMMETRY!!!!

WATCH YOUR POLYGON COUNT (20,000 IS THE NUMBER, IT CAN BE LARGER BUT....)

MOVE BACK AND FORTH MODELING BETWEEN LOW POLY COUNT AND HIGH POLYCOUNT

LOW POLY COUNT TO ROUGH OUT SHAPES

HIGH POLY COUNT FOR DETAILS













































Generate two questions for each artist
http://www.adamgrinovich.com/





https://www.emily-cobb.com/
at No comments:

Tuesday, March 7, 2017

Like a rolling stone







…like a rolling stone! (four-week project)

Assignment brief:

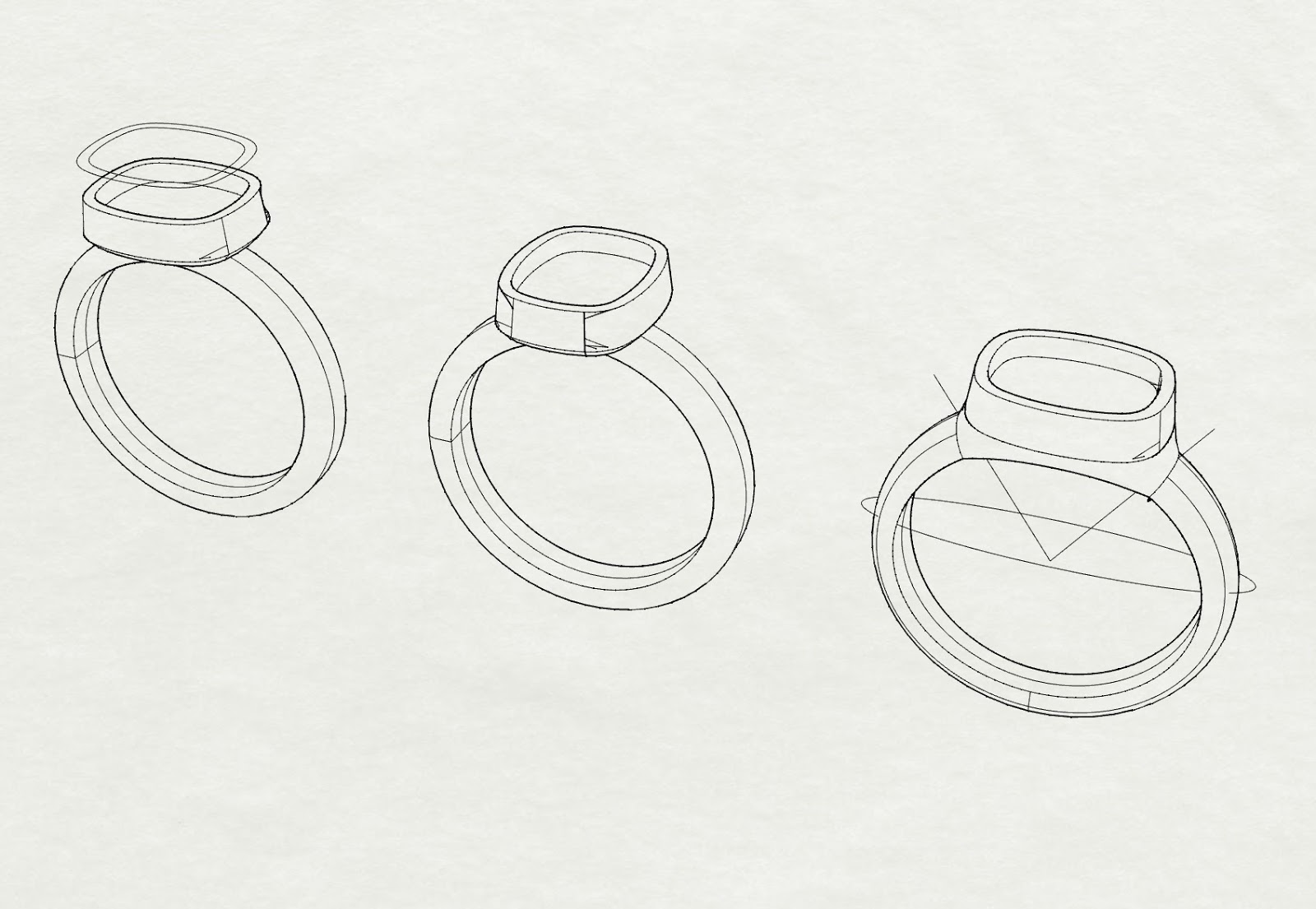

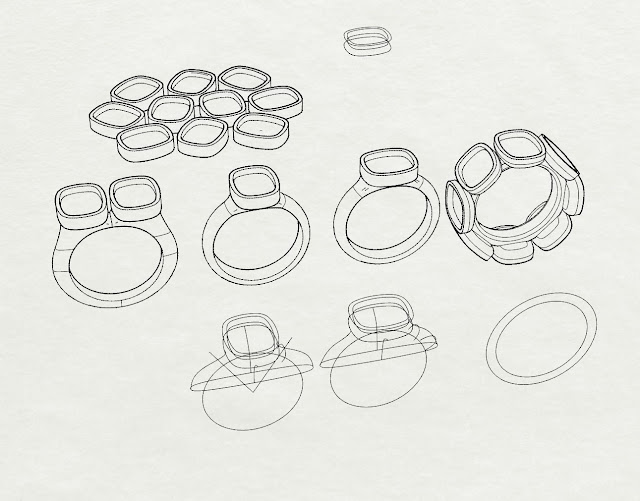

Using Rhino (not Rhino Gold) and our in house ASIGA 3D printers to model a wearable piece that will accept a stone or multiple stones. Try to push the advantages that come from using 3D printing versus traditional hand skills.

Learning outcomes:

Students will learn advanced modeling techniques in Rhino for the Form1, ASIGA and Shapeways in order to design, 3D print, cast and finish a wearable piece that will accept precious/semi precious stones.

Skills list:

Rhino: Modeling for stone-setting. Flow along surface,

Shapeways:

Material options, Wax printing versus precious metal printing

Casting:

In house versus out of house, casting versus fabricating. Advantages versus disadvantages

Basic stone knowledge, Stone setting at the bench, laser welding

Measuring stones, modeling settings, calculating for shrinkage, modeling in sprues.

Concept:

Creating a wearable piece that takes advantage of 3D printing to better understand setting stones using a digital output workflow

Research:

John Cogswell: Creative Stone Setting Find settings for inspiration, Field trip to Stachura, In house collection of stones

Questions:

How can you use 3D printing in a way that pushes stone setting?  Or wearability?
Can it be made by hand?
What is the advantage of making it with a 3D printer?
Which stones will deliver your conceptual content more effectively
Is there a more effective/creative way to set stones using 3D printing?


Expectations:

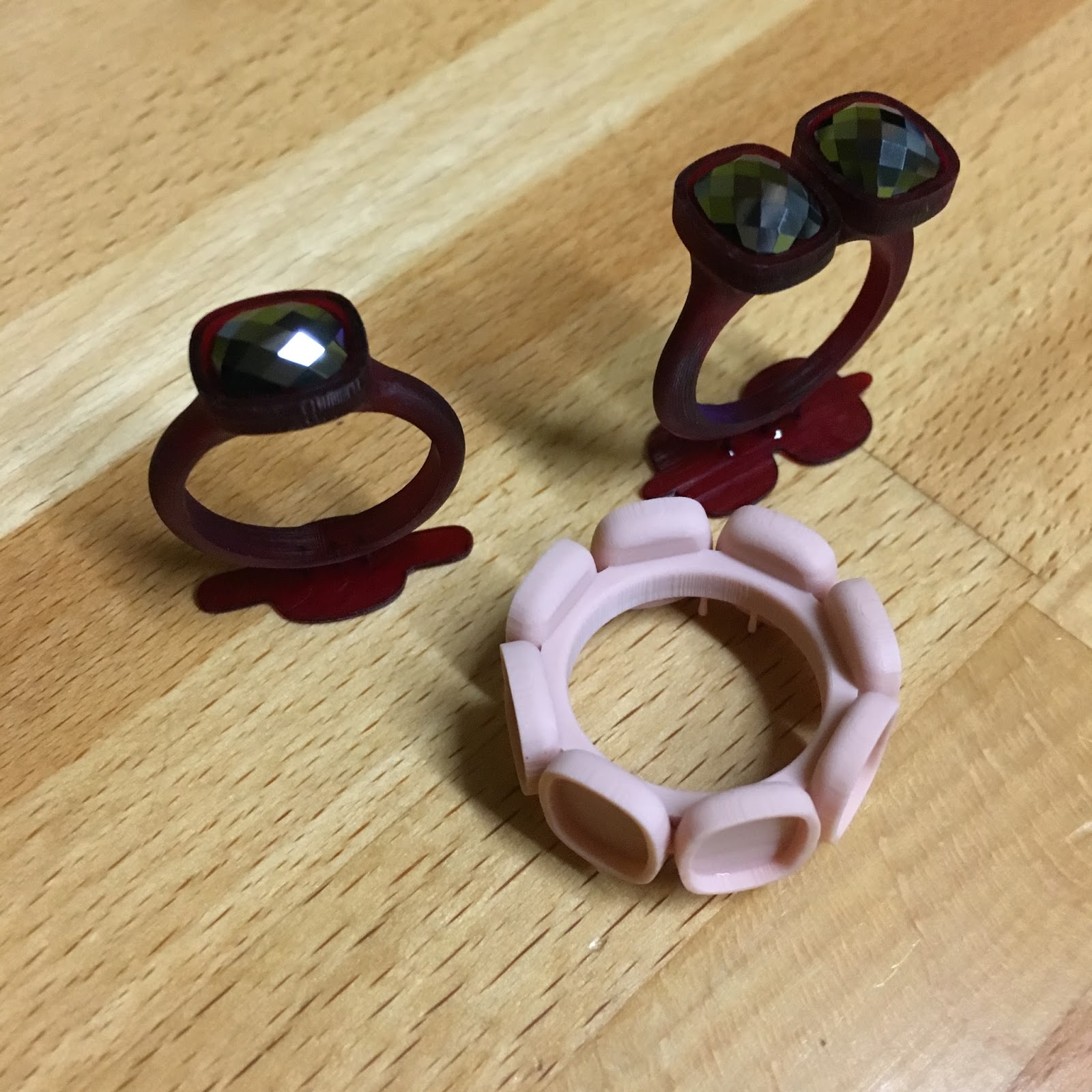

A wearable piece that takes advantage of in house 3D printing technology to include stones that are relevant to conceptual content. Tests
and mock-ups are required.  Multiple prints and castings may need to be made.  With this and all projects for this course renders and spec drawings will be turned in.
















































rerwerwe.6rerwerwe.7imageimageimage
imageimageimageDSC_0669
DSC_0668
DSC_0666





























RULE OF THIRDS

http://www.ganoksin.com/borisat/nenam/cad-modeling-prong-settings.htm

































The Mohs scale of mineral hardness was created by German mineralogist, Friedrich Mohs, in 1822 to measure the relative hardness or scratch resistance of various minerals. He based it on ten readily available minerals. As it is an ordinal scale, two minerals must be compared to decide which is harder. The scale is neither linear nor logarithmic. For example, corundum is twice as hard as topaz, but diamond is almost four times as hard as corundum.


The hardness of a material is measured against the scale by finding the hardest material that that the given material can scratch, or the softest material that can scratch the given material.


Mohs' original scale is as follows:
HardnessMaterialAbsolute Hardness
1Talc (Mg3Si4O10(OH)2)1
2Gypsum (CaSO4·2H2O)3
3Calcite (CaCO3)9
4Fluorite (CaF2)21
5Apatite (Ca5(PO4)3(OH-,Cl-,F-))48
6Orthoclase (KAlSi3O8)72
7Quartz (SiO2)100
8Topaz (Al2SiO4(OH-,F-)2)200
9Corundum (Al2O3)400
10Diamond (C)1500

To give some examples from everyday life,
a fingernail has a hardness of 2;
a copper penny, about 3;
a knife blade, 5;
window glass, 5.5;
and a steel file, 6.5.
Here are the Mohs scale ratings for 144 types of gemstones:
GemHardnessInfo Page
Diamond10Diamond Information Page
Ruby9Ruby Information Page
Sapphire9Sapphire Information Page
Star Ruby9Star Ruby Information Page
Star Sapphire9Star Sapphire Information Page
Color-Change Sapphire9Color Change Sapphire Information Page
Chrysoberyl Cat's Eye8.5Chrysoberyl Cat's Eye Information Page
Alexandrite8.5Alexandrite Information Page
Chrysoberyl8.5Chrysoberyl Information Page
Topaz8Topaz Information Page
Rutile Topaz8Rutile Topaz Information Page
Azotic Topaz8Azotic Topaz Information Page
Mystic Topaz8Mystic Topaz Information Page
Spinel8Spinel Information Page
Imperial Topaz8Imperial Topaz Information Page
Emerald7.5 - 8Emerald Information Page
Andalusite7.5Andalusite Information Page
Hambergite7.5Hambergite Information Page
Aquamarine7.5 - 8Aquamarine Information Page
Goshenite7.5 - 8Goshenite Information Page
Cat's Eye Aquamarine7.5 - 8Cat's Eye Aquamarine Information Page
Beryl7.5 - 8Beryl Information Page
Morganite7.5 - 8Morganite Information Page
Demantoid Garnet7 - 7.5Demantoid Garnet Information Page
Quartz Cat's Eye7Quartz Information Page
Amethyst7Amethyst Information Page
Cat's Eye Tourmaline7 - 7.5Cat's Eye Tourmaline Information Page
Smoky Quartz7Quartz Information Page
Quartz7Quartz Information Page
Tourmaline7 - 7.5Tourmaline Information Page
Star Lemon Quartz7Quartz Information Page
Rose Quartz7Rose Quartz Information Page
Ametrine7Ametrine Information Page
Kunzite7Kunzite Information Page
Citrine7Citrine Information Page
Mystic Quartz7Mystic Quartz Information Page
Paraiba Tourmaline7 - 7.5Paraiba Tourmaline Information Page
Danburite7 - 7.5Danburite Information Page
Strawberry Quartz7Strawberry Quartz Information Page
Aventurine7Aventurine Information Page
Rutile Quartz7Rutile Quartz Information Page
Chrome Tourmaline7 - 7.5Tourmaline Information Page
Dumortierite Quartz7 - 8.5Dumortierite Quartz Information Page
Iolite7 - 7.5Iolite Information Page
Rubellite Tourmaline7 - 7.5Rubellite Tourmaline Information Page
Tanzanite6.5 - 7Tanzanite Information Page
Peridot6.5 - 7Peridot Information Page
Mali Garnet6.5 - 7.5Mali Garnet Information Page
Jasper6.5 - 7Jasper Information Page
Axinite6.5 - 7Axinite Information Page
Chrysoprase6.5 - 7Chrysoprase Information Page
Fossil Coral6.5 - 7Fossil Coral Information Page
Dendritic Agate6.5 - 7Dendritic Agate Information Page
Spessartite Garnet6.5 - 7.5Spessartite Garnet Information Page
Fire Agate6.5 - 7Fire Agate Information Page
Tiger's Eye6.5 - 7Tiger's Eye Information Page
Grossularite Garnet6.5 - 7.5Grossularite Information Page
Agate Geode6.5 - 7Agate Geode Information Page
Star Rose Quartz6.5 - 7Rose Quartz Information Page
Ruby-Zoisite6.5 - 7Ruby Zoisite Information Page
Star Garnet6.5 - 7.5Garnet Information Page
Idocrase6.5Idocrase Information Page
Color-Change Garnet6.5 - 7.5Garnet Information Page
Hiddenite6.5 - 7Hiddenite Information Page
Agate6.5 - 7Agate Information Page
Melanite6.5 - 7Melanite Information Page
Zircon6.5 - 7.5Zircon Information Page
Color-Change Diaspore6.5 - 7Color Change Diaspore Information Page
Bloodstone6.5 - 7Bloodstone Information Page
Hessonite Garnet6.5 - 7.5Hessonite Garnet Information Page
Tiger's Eye Matrix6.5 - 7Tiger's Eye Information Page
Cat's Eye Diaspore6.5 - 7Cat's Eye Diaspore Information Page
Spodumene6.5 - 7Spodumene Information Page
Tsavorite Garnet6.5 - 7.5Tsavorite Garnet Information Page
Almandine Garnet6.5 - 7.5Almandine Garnet Information Page
Peanut Wood6.5 - 7Peanut Wood Information Page
Onyx6.5 - 7Onyx Information Page
Carnelian6.5 - 7Carnelian Information Page
Pyrope Garnet6.5 - 7.5Pyrope Garnet Information Page
Chalcedony6.5 - 7Chalcedony Information Page
Rhodolite Garnet6.5 - 7.5Rhodolite Garnet Information Page
Sillimanite Cat's Eye6.5 - 7.5Sillimanite Information Page
Andesine Labradorite6 - 6.5Andesine Labradorite Information Page
Star Moonstone6 - 6.5Star Moonstone Information Page
Prehnite6 - 6.5Prehnite Information Page
Labradorite6 - 6.5Labradorite Information Page
Rainbow Moonstone6 - 6.5Rainbow Moonstone Information Page
Rainbow Pyrite6 - 6.5Rainbow Pyrite Information Page
Sunstone6 - 6.5Sunstone Information Page
Moonstone6 - 6.5Moonstone Information Page
Sugilite6 - 6.5Sugilite Information Page
Clinohumite6Clinohumite Information Page
Maw-Sit-Sit6 - 7Maw-sit-sit Information Page
Cassiterite6 - 7Cassiterite Information Page
Kyanite6 - 7Kyanite Information Page
Star Sunstone6 - 6.5Sunstone Information Page
Jadeite6 - 6.5Jadeite Information Page
Nephrite Jade6 - 6.5Nephrite Jade Information Page
Orthoclase6 - 6.5Orthoclase Information Page
Amazonite6 - 6.5Amazonite Information Page
Cat's Eye Scapolite5.5 - 6Cat's Eye Scapolite Information Page
Moss Opal5.5 - 6.5Moss Opal Information Page
Hematite5.5 - 6.5Hematite Information Page
Nuummite5.5 - 6Nuummite Information Page
Moldavite5.5Moldavite Information Page
Opal Doublet5.5 - 6.5Opal Information Page
Fire Opal5.5 - 6.5Fire Opal Information Page
Rhodonite5.5 - 6.5Rhodonite Information Page
Scapolite5.5 - 6Scapolite Information Page
Boulder Opal5.5 - 6.5Boulder Opal Information Page
Opal5.5 - 6.5Opal Information Page
Sodalite5.5 - 6Sodalite Information Page
Hackmanite5.5 - 6Hackmanite Information Page
Sphene5 - 5.5Sphene Information Page
Lapis Lazuli5 - 6Lapis Lazuli Information Page
Tremolite-Hexagonite5 - 6Tremolite-Hexagonite Information Page
Hemimorphite5Hemimorphite Information Page
Star Diopside5 - 6Chrome Diopside Information Page
Smithsonite5Smithsonite Information Page
Cat's Eye Apatite5Cat's Eye Apatite Information Page
Turquoise5 - 6Turquoise Information Page
Snowflake Obsidian5 - 5.5Obsidian Information Page
Apatite5Apatite Information Page
Chrome Diopside5 - 6Diopside Information Page
Obsidian5 - 5.5Obsidian Information Page
Tashmarine Diopside5 - 6Tashmarine Diopside Information Page
Larimar4.5 - 5Larimar Information Page
Gaspeite4.5 - 5Gaspeite Information Page
Charoite4.5 - 5Charoite Information Page
Rhodochrosite4Rhodoschrosite Information Page
Variscite4 - 5Variscite Information Page
Ammolite4Ammolite Information Page
Fluorite4Fluorite Information Page
Azurite3.5 - 4Azurite Information Page
Malachite3.5 - 4Malachite Information Page
Sphalerite3.5 - 4Sphalerite Information Page
Calcite3Calcite Information Page
Coral3 - 4Coral Information Page
Verdite3Verdite Information Page
Lepidolite2.5 - 3Lepidolite Information Page
Pearl2.5 - 4.5Pearl Information Page
Chrysocolla2 - 4Chrysocolla Information Page
Seraphinite2 - 4Seraphinite Information Page
Amber2 - 2.5Amber Information Page
